Best High-Quality Aluminum Alloy Angle Bracket for Solar PV Systems - China Suppliers & Factory Manufacturers, Factory
Product Description
Product Application
✔
Widely used for right-angle connection and reinforcement in photovoltaic mounting systems, including ground PV power stations, metal rooftop solar installations and distributed photovoltaic projects.
✔
Suitable for linking aluminum guide rails, bracket profiles, support bases and auxiliary components, building a rigid and stable frame for solar panel mounting structures.
✔
Compatible with 3040 aluminum guide rails, mid/side clamps, purlin connectors and standard PV fasteners, forming a complete and integrated solar supporting system.
✔
Applied in industrial, commercial and residential solar projects, adapting to flat roofs, sloped roofs and open-air ground installation scenarios.
Material & Processing Features
✔
Made of high-grade 6063-T5 aluminum alloy, with lightweight property, high tensile strength and good toughness, reducing the overall load of PV mounting structures.
✔
Adopts precision extrusion and CNC bending process, strictly controlling 90° right-angle tolerance, with smooth surface and burr-free edges for safe and accurate assembly.
✔
Reinforced bending design enhances compression and shear resistance, avoiding deformation or fracture under long-term load and wind vibration.
✔
Equipped with oblong adjustable mounting holes, allowing flexible position fine-tuning during installation to improve construction adaptability and accuracy.
✔
Anodized surface treatment forms a wear-resistant and anti-oxidation protective layer, delivering excellent salt spray resistance for long-term outdoor use.
Core Product Benefits
✔
Lightweight and high-strength design lowers transportation and handling costs, while ensuring reliable load-bearing capacity for PV mounting components.
✔
Standardized modular structure enables quick on-site assembly, simplifying construction steps and improving overall installation efficiency of photovoltaic projects.
✔
Excellent anti-corrosion and anti-aging performance, suitable for coastal, high-humidity and other harsh outdoor environments, extending service life.
✔
Strong versatility and compatibility, matching various aluminum profiles and PV accessories, supporting customized size processing per project requirements.
✔
Comply with international photovoltaic accessory standards, passing tensile tests, salt spray tests and load tests, with stable performance and reliable quality.
✔
Detachable and reusable design facilitates later system maintenance, expansion and relocation, providing a cost-effective connection solution for solar projects.

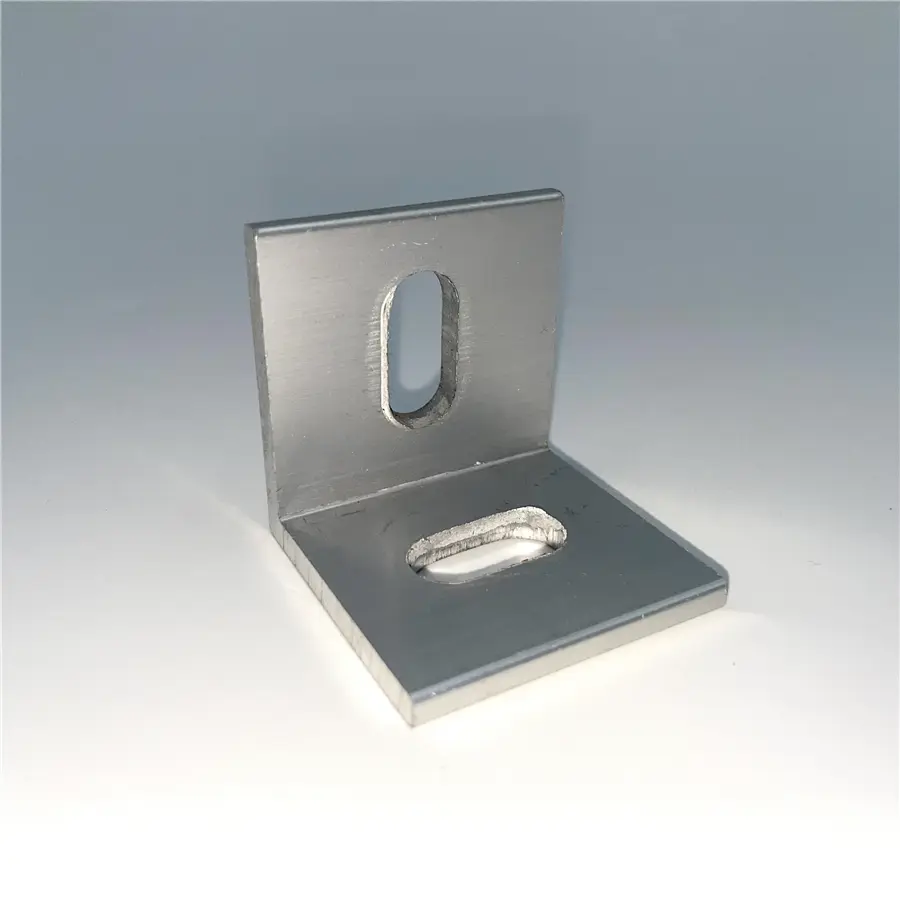

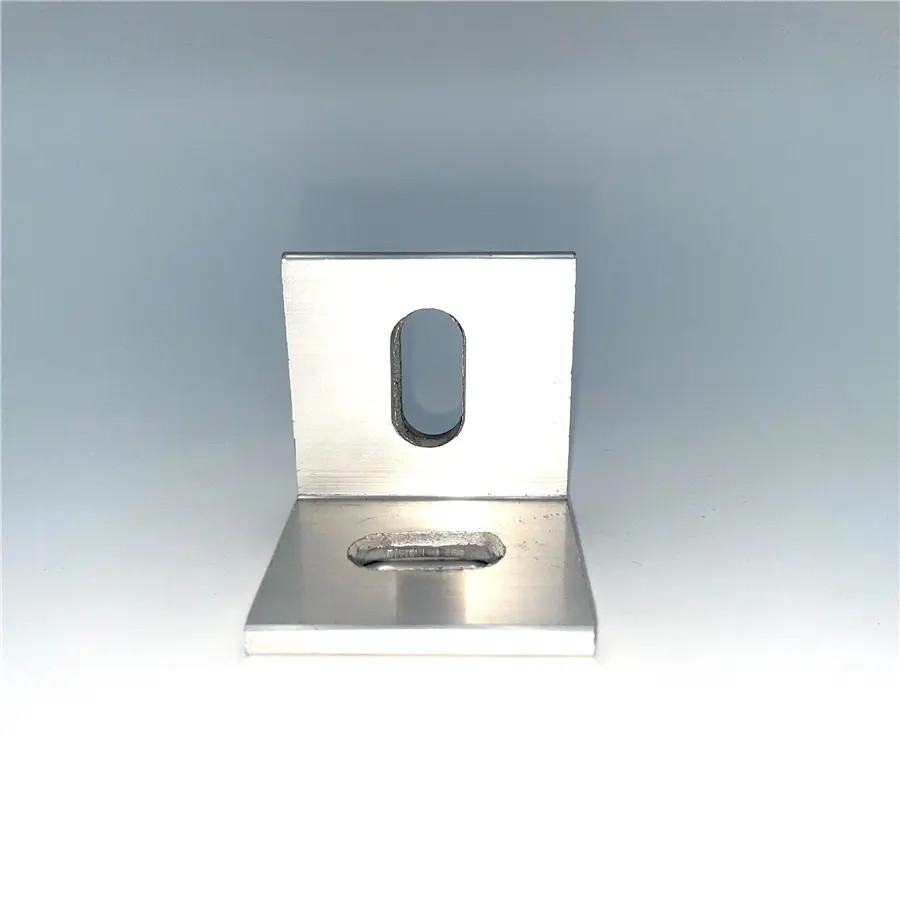

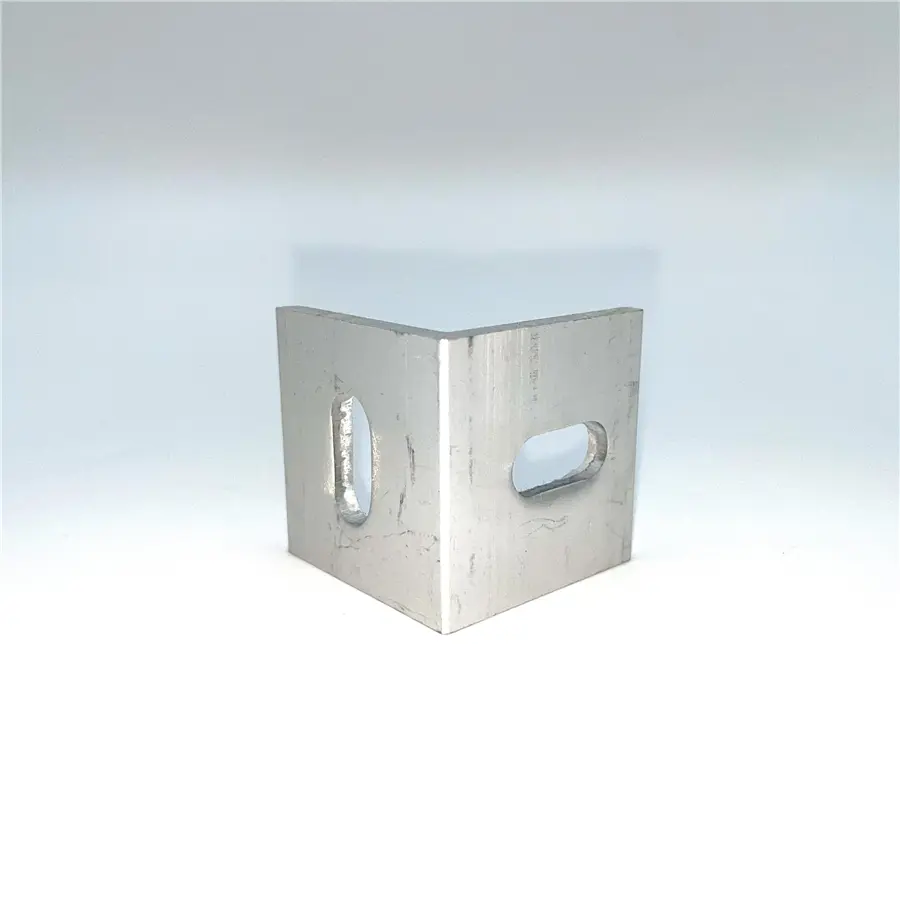

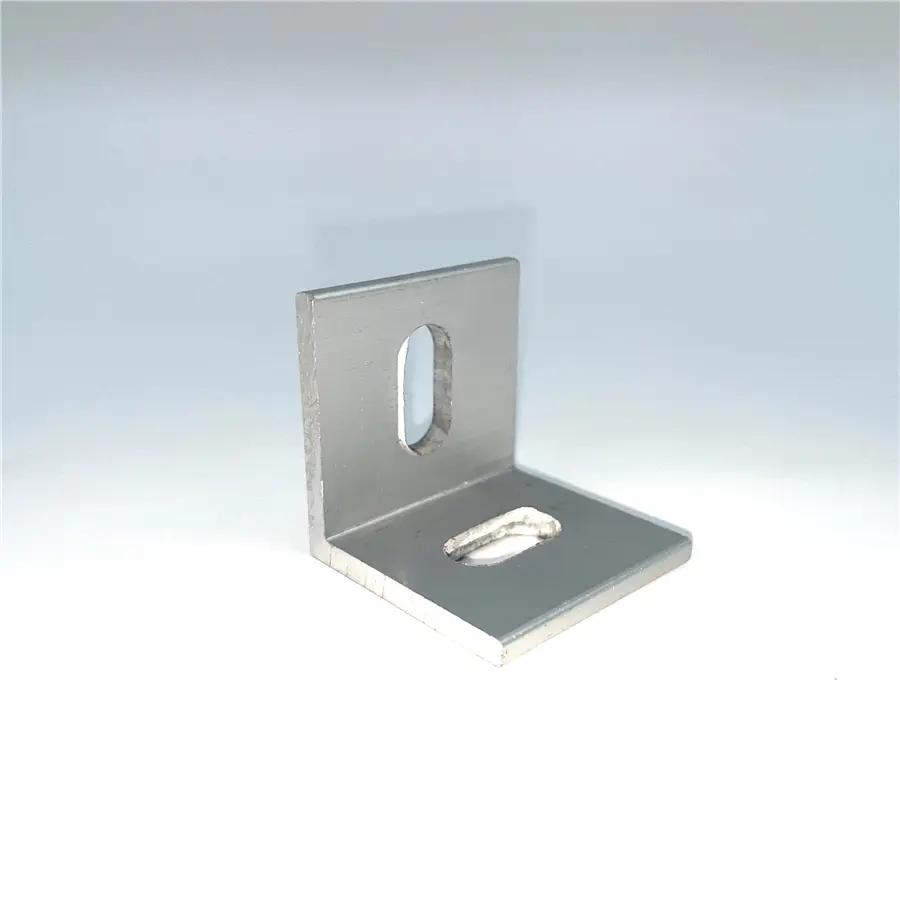

Detail Pictures
Frequently Asked Questions
QWhat material is the PV angle bracket made of?
The brackets are made of high-grade 6063-T5 aluminum alloy, which offers an excellent balance of lightweight properties and high tensile strength.
QIs this bracket suitable for coastal solar installations?
Yes, the surface is treated with an anodized oxidation layer, providing superior resistance to salt spray and corrosion in high-humidity or coastal environments.
QCan these brackets be used with different types of rails?
Absolutely. They are specifically designed for compatibility with 3040 aluminum guide rails and a wide range of standard PV fasteners and bracket profiles.
QHow does the adjustable hole design help during installation?
The oblong mounting holes allow for fine-tuning of the bracket position on-site, compensating for minor alignment variations and speeding up the construction process.
QAre these brackets certified for safety and load-bearing?
Yes, our products comply with international photovoltaic accessory standards and have passed rigorous tensile, salt spray, and load-bearing tests.
QCan the brackets be reused if the system is relocated?
Yes, the detachable modular design allows for easy removal and reinstallation, making them a cost-effective choice for long-term project maintenance or expansion.
