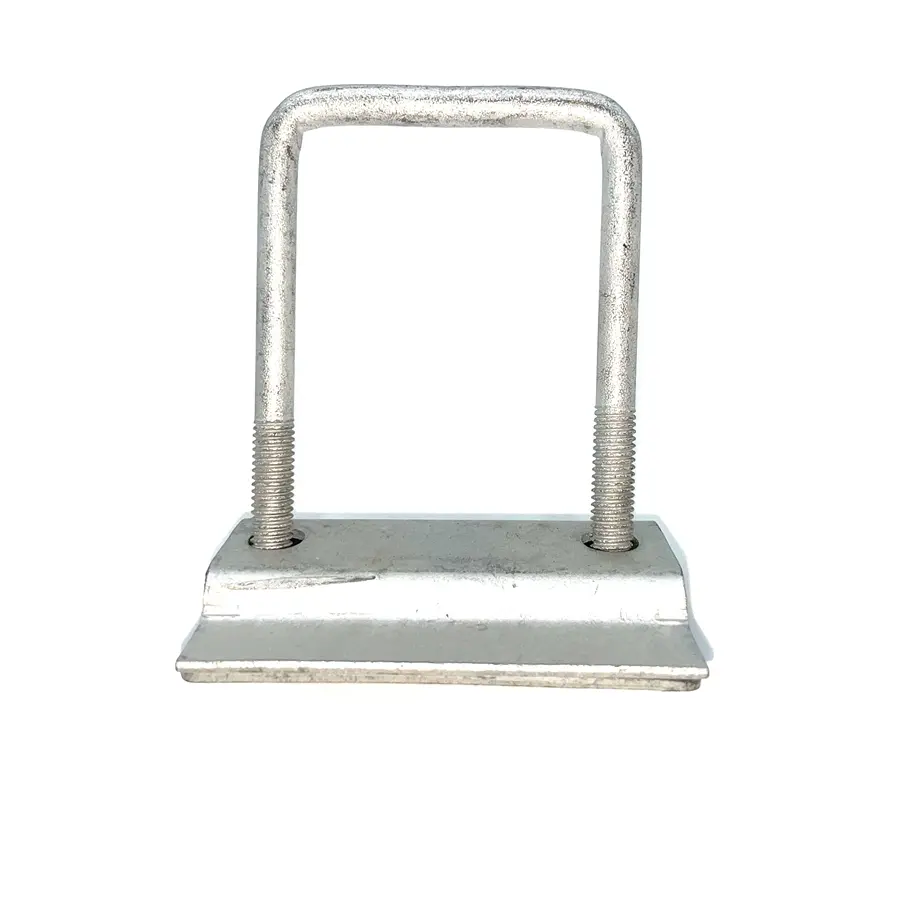

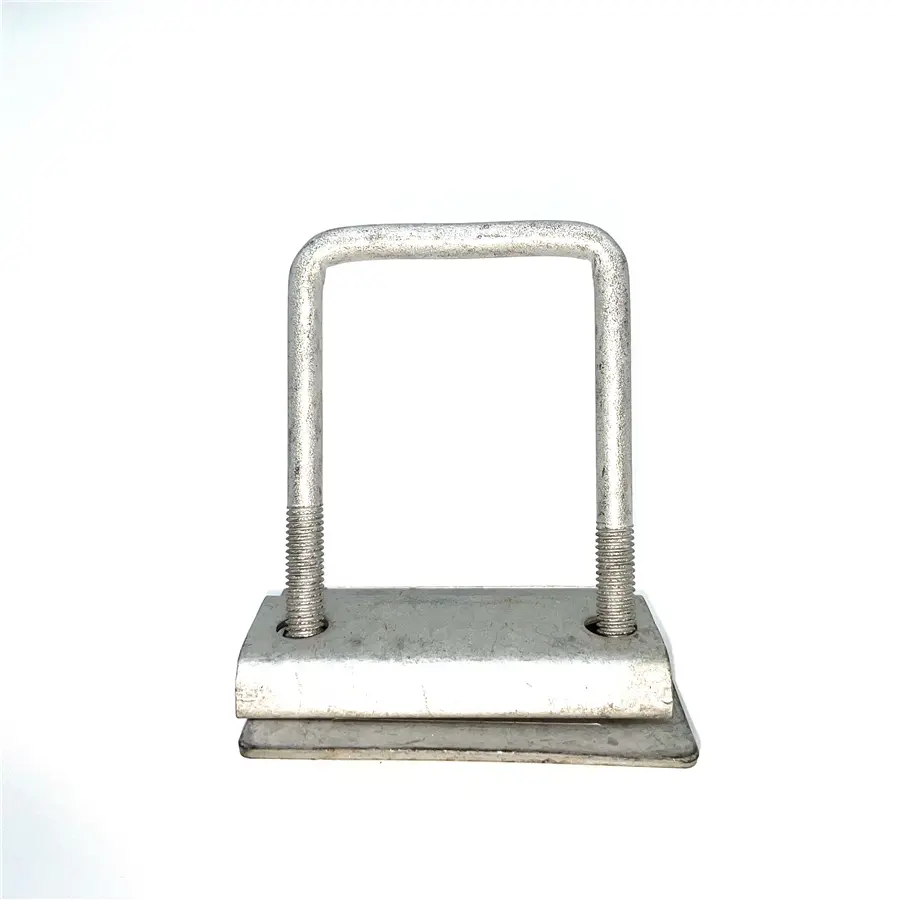

Best China Suppliers Factory High-Strength Double-Hole Pressure Plate for Solar PV Mounting Systems Factories, Product
Product Description
Product Application
●
Widely used for pressing and fixing guide rails, brackets and connecting components in ground PV power stations, metal rooftop solar systems and distributed photovoltaic installations.
●
Suitable for 3040 aluminum guide rails and conventional photovoltaic mounting profiles, realizing stable compression and preventing horizontal displacement of mounting parts.
●
Compatible with photovoltaic bases, angle brackets, purlin connectors and standard fasteners, forming a complete and firm solar panel supporting structure.
●
Applied in industrial, commercial and residential solar projects, adapting to flat roofs, sloped roofs, open ground and other common photovoltaic installation scenarios.
Material & Processing Features
●
Made of high-grade 6063-T5 aluminum alloy, with lightweight property, high compressive strength and good toughness, reducing the overall load of PV mounting systems.
●
Adopts precision stamping and integrated bending process, with accurate double-hole spacing, smooth surface and burr-free edges, ensuring tight fitting and safe assembly.
●
Reinforced pressing surface design distributes stress evenly, avoiding local deformation of guide rails and components under long-term compression and wind vibration.
●
Equipped with standard oblong mounting holes, allowing fine-tuning of installation position to adapt to different profile sizes and construction needs.
●
Anodized surface treatment forms a dense protective layer, with excellent anti-oxidation, anti-rust and salt spray resistance, suitable for long-term outdoor harsh environments.
Core Product Benefits
●
Double-hole fixed design enhances pressing stability, effectively disperses external force and prevents loosening of photovoltaic mounting components.
●
Simple and compact structure enables quick on-site installation, simplifying construction steps and improving the overall efficiency of photovoltaic projects.
●
Strong versatility and compatibility, matching various aluminum profiles and PV accessories, supporting customized size processing per project drawings.
●
Excellent weather resistance and anti-aging performance, suitable for coastal, high-humidity and high-cold areas, prolonging the service life of the whole mounting system.
●
Comply with international photovoltaic accessory quality standards, passing tensile tests, salt spray tests and load tests, with stable performance and reliable quality.
●
Detachable and reusable design facilitates later system maintenance, adjustment and expansion, providing a cost-effective pressing solution for solar projects.

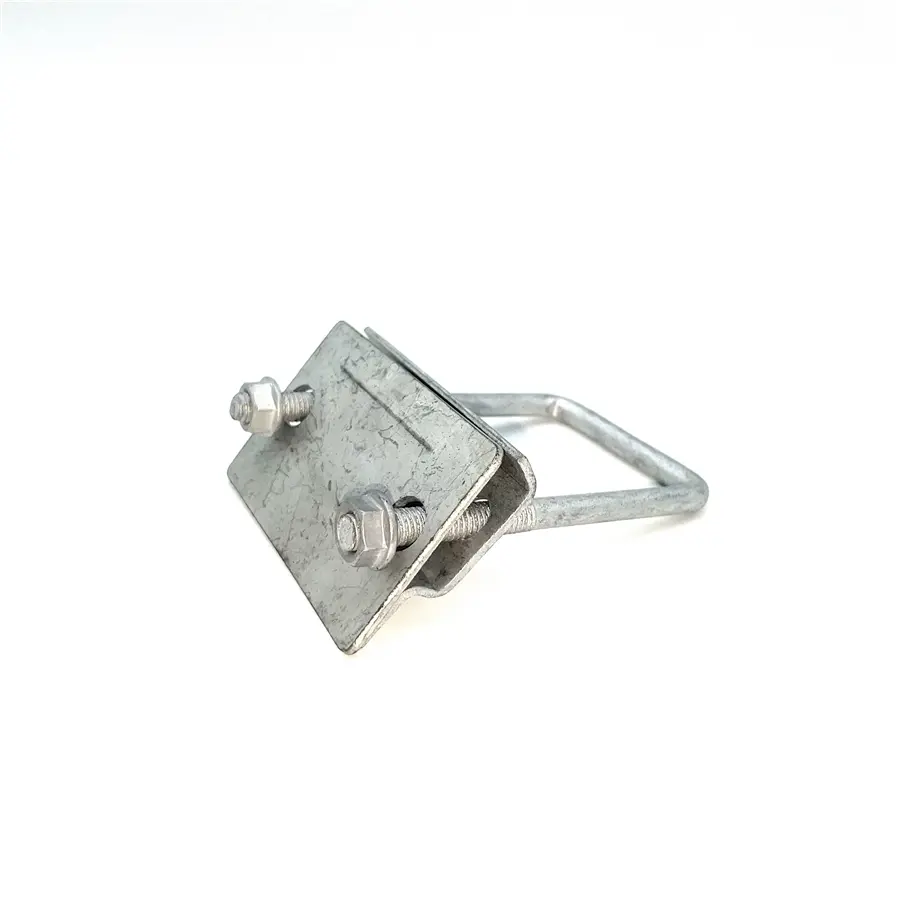

Detail Pictures
Frequently Asked Questions
What materials are used for the PV double-hole pressure plate?
The pressure plates are manufactured from high-grade 6063-T5 aluminum alloy, providing an optimal balance of lightweight property and high structural strength.
Is this product compatible with different rail sizes?
Yes, it is specifically designed for 3040 aluminum guide rails and is compatible with most standard photovoltaic mounting profiles and accessories.
How does the anodized surface treatment benefit the installation?
The anodized layer provides superior resistance to oxidation, rust, and salt spray, making it ideal for harsh outdoor environments, including coastal and high-humidity areas.
Can these pressure plates be reused?
Absolutely. The detachable design allows for easy removal and re-installation, which is highly beneficial for system maintenance or future expansions.
Does the design prevent component loosening over time?
Yes, the double-hole fixed design and reinforced pressing surface are engineered to distribute stress evenly and prevent loosening caused by wind vibration or thermal expansion.
Are customized sizes available for specific project needs?
We support customized size processing based on specific project drawings to ensure a perfect fit for unique photovoltaic installation scenarios.
